Hortizontal Silicon Rubber Injection Molding Machine

Hortizontal Silicon Rubber Injection Molding Machine

The Pbear FIF0 horizontal rubber injection molding machine features a horizontal clamping system and a first-in, first-out horizontal injection system. It is suitable for a variety of rubber parts and seals in the automotive, medical, aviation, energy, rail transportation, industrial, and home appliance industries. It offers fast cycle times and stable physical and mechanical properties.

  • Processing Capabilities：200-500T
  • Fist in, First Out Injection
  • Production efficiency increased by 50%
  • Runner material waste reduced by 70%
  • Save 50%-70% of motor energy consumption
  • 2 years quality warranty
Get free Quotation

Our advanced horizontal rubber injection molding machine features adjustable injection and curing speeds, damage prevention technology, and multi-stage pressure control, making it suitable for producing a wide range of rubber parts.
This machine’s adjustable injection capability allows for a variety of curing and injection speeds, making it suitable for different rubber parts. A key feature is its damage prevention feature, which protects the mold and ensures longevity.
This machine offers precise three-stage pressure and speed control for mold opening and closing, enhancing molded product quality and consistency. Designed to meet the needs of a wide range of rubber parts, it is a versatile solution for a wide range of applications.
The horizontal first-in, last-out injection structure ensures efficient material utilization and high-quality results. This machine seamlessly blends precision, safety, and flexibility, aiming to revolutionize rubber part production.

FIFO Hortizontal Silicon Rubber Injection Molding Machine Application

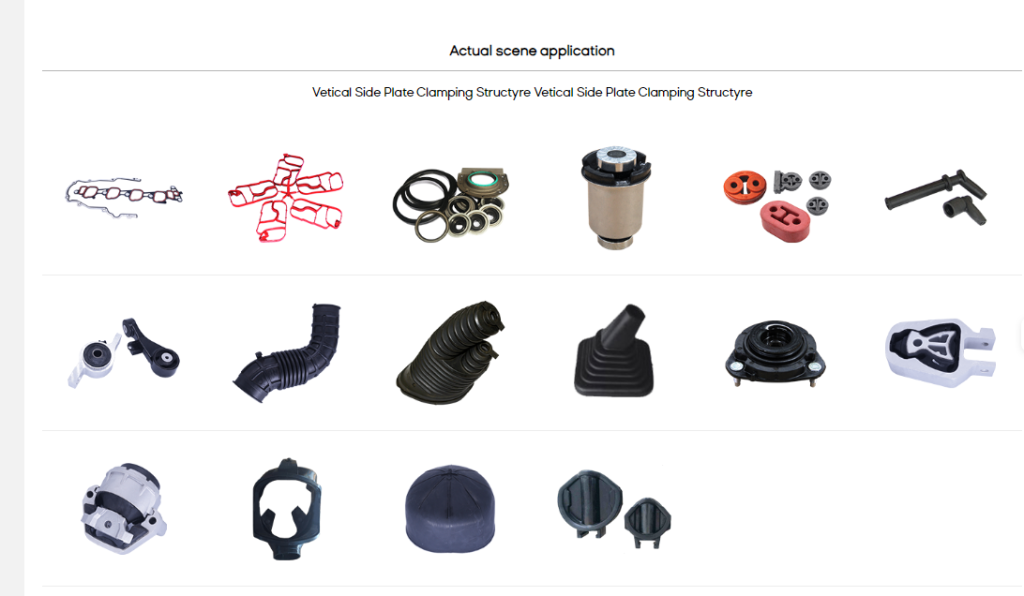

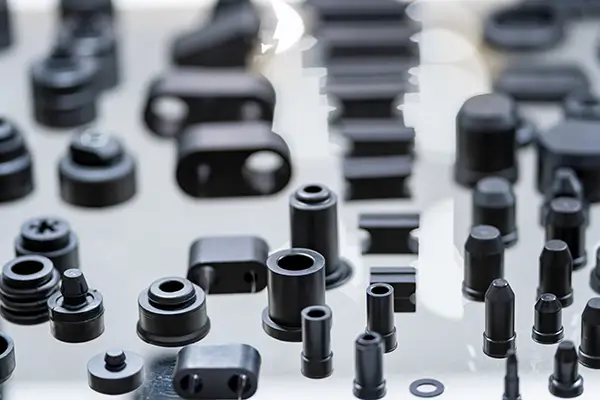

Our horizontal silicone rubber injection molding machine is primarily used for producing rubber molded products such as automotive parts, medical products, energy products, industrial rubber, electrical insulation components, seals, shock absorbers, toys, and fitness equipment. It offers fast production cycles, high-quality products, consistent and stable physical and mechanical properties, and precise geometric dimensions. It is particularly suitable for rubber products with complex shapes, thick walls, and inserts.
It can be used to mold a variety of rubbers, including natural rubber (NR), nitrile rubber (NBR), ethylene propylene diene monomer (EPDM), styrene butadiene rubber (SBR), hydrogenated nitrile rubber (HNBR), fluororubber (FKM), silicone rubber (SILICONE), acrylic rubber (ACM), and acrylic copolymer (AEM).

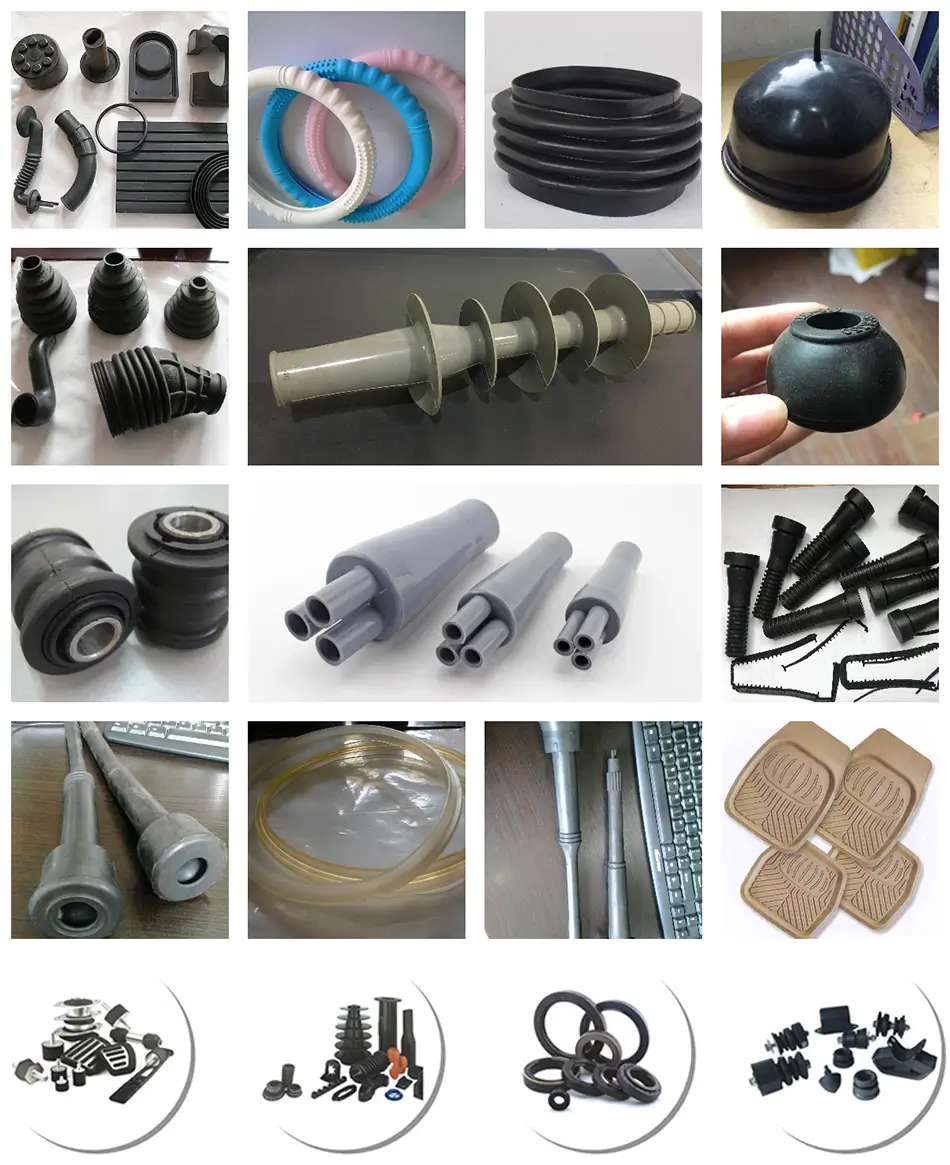

rubber injection machine manufacturing

1. This rubber injection molding machine consists of a four-column clamping mechanism and injection mechanism, ensuring ultra-stable injection force.
2. The optimized injection rod significantly reduces glue leakage, making maintenance and glue changes quick and easy.
3. The innovative injection tube constant temperature system and ultra-short nozzle minimize excess material and pressure loss.
4. Specifications below 500 tons utilize the internationally popular FIFO (First-in-First-out) injection method.
5. Zoned heating control on the hot plate ensures more uniform temperature.
6. The machine boasts a compact structure and a rational layout, offering fast injection speeds, uniform heating, precise material storage, reliable operation, and a low failure rate.
7. The mold base and injection position are both controlled by an electronic scale, ensuring precise positioning, high material storage, and injection accuracy, effectively reducing waste and defect rates.
8. Optional metering pumps with dual proportional valves, dual proportional variable pumps, and servo pumps are available. Combined with the electronic scale, these pumps enable three-stage control of mold base and injection pressure and flow, meeting various process conditions. 9. Pay attention to operational safety. The operation area is protected by a grating and can be started by both hands, with no safety hazards or blind spots.

Standard unit

  • High-efficiency pressure-flow ratio hydraulic system;
  • upper mechanical mold lifter;
  • lower mold insertion and removal device;
  • two-layer demolding device;
  • fully enclosed safety baffles and gratings;
  • independent temperature control systems for plasticization and injection;
  • hot plate heating zone control;
  • Siemens controller

Standard unit

  • Variable displacement pump system
  • Cold runner system
    3RT/4RT multi-layer demolding system
  • Mold insertion and removal system
  • Claw mechanism
  • Mold vacuum system
    Quick mold changer
  • Remote control
  • Printing function
  • Mold prefabrication heating function
  • Injection volume increase

Parameters

Type BJXL-200T BJXL-300T BJXL-400T BJXL-500T
Clamping force(TON) 200 300 400 500
Stroke(mm) 500 500 600 600
Working Plate Size(mm) 600x600 700x700 700x800 800x850
Dimeter of cyhnder(mm) 355 450 500 560
Max Plate Space (mm) 550 550 700 700
Min.Mould Height(mm) 60 60 100 100
Crane travel(mm) 200 200 250 250
Joe travel(mm) 200 200 250 250
Injection unit
Volume Injection(CC) 2000 3000 4000 5000
Injection pressure(Mpa) 188 182 178 178
Screw diameter(mm) 45 45 55 55
Nozzle aperture(mm) 6 6 7 8
Others
System pressure(Mpa) 21 21 21 21
Horse power(HP) 15 20 25 30
Heater Power(KW) 19 22 27 31
Total power (KW) 36 40 52 58
Gross weight(Kg) 7200 9300 11700 14700
Machine size(mm) 3400x1600x3000 3900x1800x3400 4200x2100x3900 4600x2300x4200
Remarks:1.In case of speclal specification,itmay design and manufacture according to customer's need.
